| Manufacturer | MEAN WELL |
| Series | UHP-200 (200W) |
| Package | Box |
| Description | Enclosed AC DC Converters 1 Output 48V 90 ~ 264 VAC, 127 ~ 370 VDC Input |
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
| Voltage – Input | 90 ~ 264 VAC, 127 ~ 370 VDC |
| Size / Dimension | 7.64″ L x 2.17″ W x 1.02″ H (194.0mm x 55.0mm x 26.0mm) |

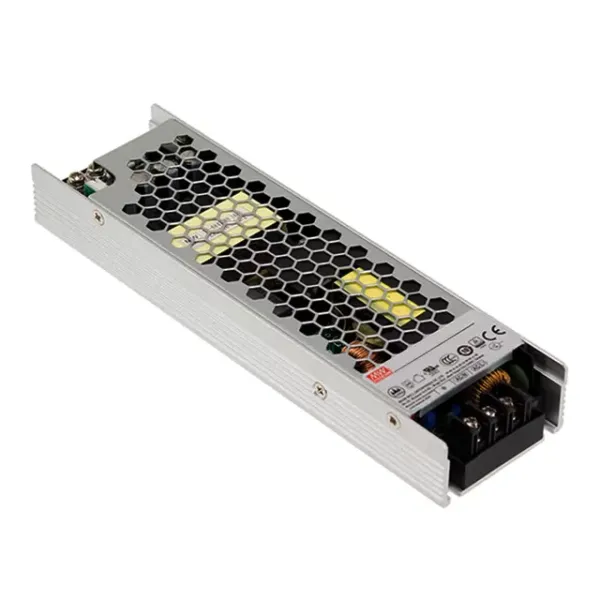

The UHP-200-48 is a power supply unit from MEAN WELL that provides 200W of power with an output voltage of 48V and an output current of 4.17A. It operates with an input voltage range of 90-264VAC and has an efficiency of up to 94%. The unit is compact, measuring 244.5 x 68 x 38.8 mm and weighing approximately 0.65 kg. It includes protections against short circuit, overload, overvoltage, and overtemperature, and it uses fanless cooling for silent operation.
