| Manufacturer | Texas Instruments |
| Series | TPS54560 |
| Package | Reel |
| Description | IC REG BCK SPLIT RAIL ADJ 8SOPWR |
| Product Status | Active |
| Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerSOIC (0.154″, 3.90mm Width) |
| Supplier Device Package | 8-SO PowerPad |
| Product Type | Switching Voltage Regulators |

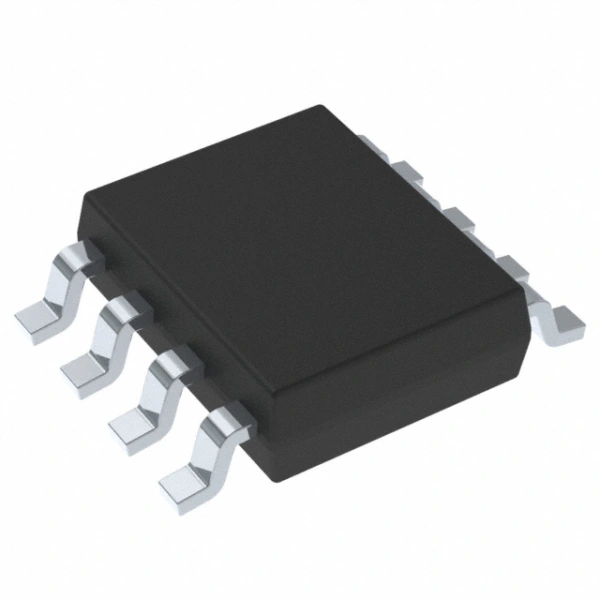

The TPS54560DDAR is a synchronous step-down DC/DC converter manufactured by Texas Instruments. It is a highly integrated device with built-in power MOSFET switching tubes and control circuits, etc. The TPS54560DDAR utilizes PWM modulation with adjustable frequency and fixed duty cycle to provide an adjustable output voltage. The device is suitable for a wide range of applications including communication equipment, servers, TVs, industrial control and consumer electronics. It features high efficiency, low static power consumption, and fast load transient response to meet the demands of high performance power management.
