| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR), Cut Tape (CT) |
| Description | TVS DIODE 5.5VWM 15VC SOT23-6 |
| Product Status | Active |
| Manufacturer Standard Lead Time | 6 Weeks |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Type | Steering (Rail to Rail) |
| Unidirectional Channels | 4 |
| Voltage – Reverse Standoff (Typ) | 5.5V (Max) |
| Voltage – Breakdown (Min) | 6.5V |
| Voltage – Clamping (Max) @ Ipp | 15V (Typ) |
| Current – Peak Pulse (10/1000µs) | 3A (8/20µs) |
| Power – Peak Pulse | 45W |
| Power Line Protection | Yes |
| Applications | Ethernet, HDMI |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| Base Product Number | TPD4E1 |

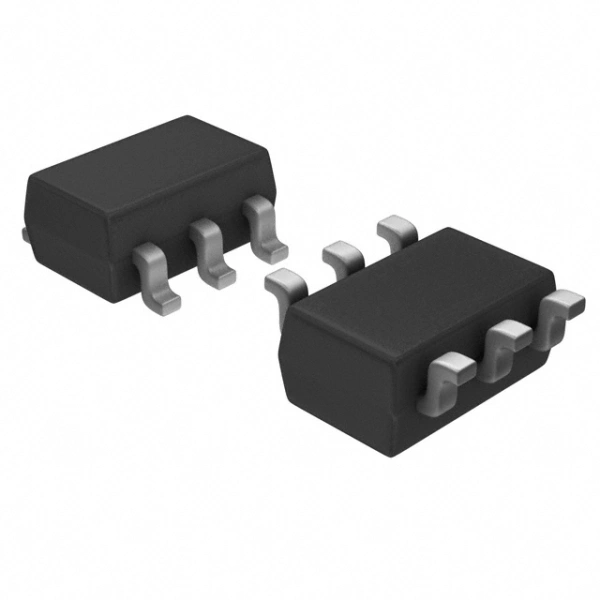

- The TPD4E1U06DBVR features four independent ESD protection channels. This configuration allows it to provide comprehensive protection for multiple signal or data lines, making it particularly suitable for applications with multi-line interfaces.
- Engineered for high-speed applications, this protection device ensures the integrity of signals transmitted over fast data and communication lines. It effectively clamps voltages induced by ESD events, preventing damage to downstream components.
- The primary function of the TPD4E1U06DBVR is to protect sensitive electronic circuits from electrostatic discharge events. It accomplishes this by diverting excess energy from ESD strikes away from the protected circuit, ensuring that the voltage does not exceed safe operating levels.
