| Manufacturer | STMicroelectronics |
| Manufacturer Standard Lead Time | 25 Weeks |
| Description | IC MTR DRVR BIPLR 7-45V 24TFQFPN |
| Series | STSPIN8 |
| Package | Tape & Reel (TR), Cut Tape (CT) |
| Product Status | Active |
| Voltage – Supply | 7V ~ 45V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Base Product Number | STSPIN820 |

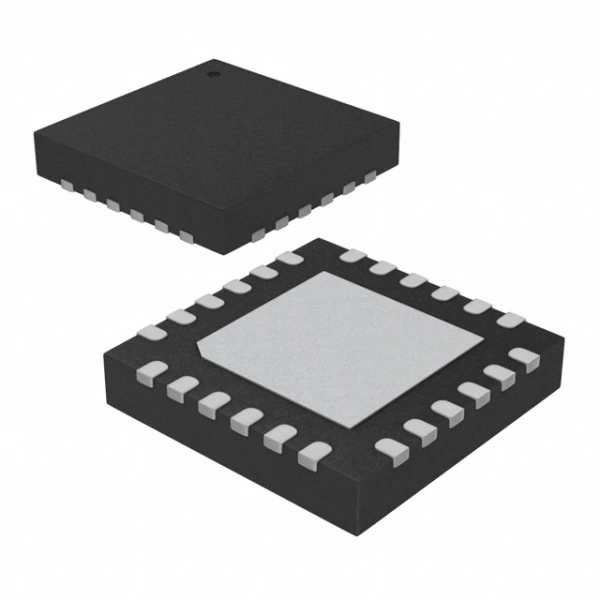

| Package / Case | 24-TFQFN Exposed Pad |
| Supplier Device Package | 24-TQFPN (4×4) |
| Mounting Type | Surface Mount |
- The STSPIN820 features a step-clock and direction interface, providing a straightforward and widely used method for controlling stepper motors. This makes it compatible with various microcontrollers and systems.
- Precise control over motor current is crucial for optimizing performance and minimizing power consumption. The STSPIN820 includes current control features to achieve efficient operation under different load conditions.
- The motor driver is equipped with fault detection and protection mechanisms. These features help prevent damage to the motor and the driver itself by detecting and reacting to abnormal operating conditions.
