| Manufacturer | STMicroelectronics |
| Series | STM32F1 |
| Package | Tray |
| Description | ARM® Cortex®-M3 STM32F1 Microcontroller IC 32-Bit Single-Core 72MHz 64KB (64K x 8) FLASH |
| Product Status | Active |
| Manufacturer Standard Lead Time | 10 Weeks |
| Processor Series | ARM Cortex M |
| Program Memory Size | 64kB |
| Data RAM Size | 20kB |
| Supply Voltage | 2V – 3.6V |
| Data RAM Type | SRAM |
| Number of Timers/Counters | 3 Timer |
| Number of I/Os | 37 I/O |
| ADC Channels Number | 10 Channel |
| Oscillator Type | Internal |
| Width / Height / Length | 7mm / 1.4mm / 7mm |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 48-LQFP |
| Product Type | ARM Microcontrollers – MCU |
| Base Product Number | STM32F103 |
| Product | MCUs |
| Program Memory Type | Flash |
| Unit Weight | 0.006349 oz |
| Tradename | STM32 |

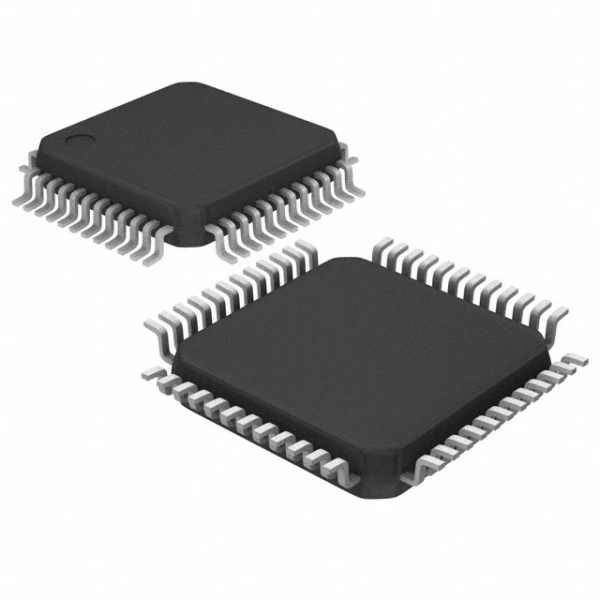

STMicroelectronics STM32F103C8T6 in Stock
Stock: Can Ship Immediately
STM32F103C8T6 Features
- STM32F103C8T6 is part of the STM32 series, specifically belonging to the STM32F1 family. This MCU is based on the Arm Cortex-M3 core of various embedded applications.
- It includes numerous peripherals, such as timers, communication interfaces (SPI, I2C, USART), analog-to-digital converters, and more.
- The STM32F103C8T6 is built on the ARM Cortex-M3 32-bit RISC processor architecture. This advanced architecture provides a powerful and efficient platform for embedded systems.
- With 64KB of Flash memory, the STM32F103C8T6 offers ample space for storing the firmware or program code.
- The presence of 2×12-bit ADCs (Analog-to-Digital Converters) enables the microcontroller to convert analog signals into digital data with a high level of precision.
- Application areas: consumer electronics, industrial automation, IoT devices, and more.

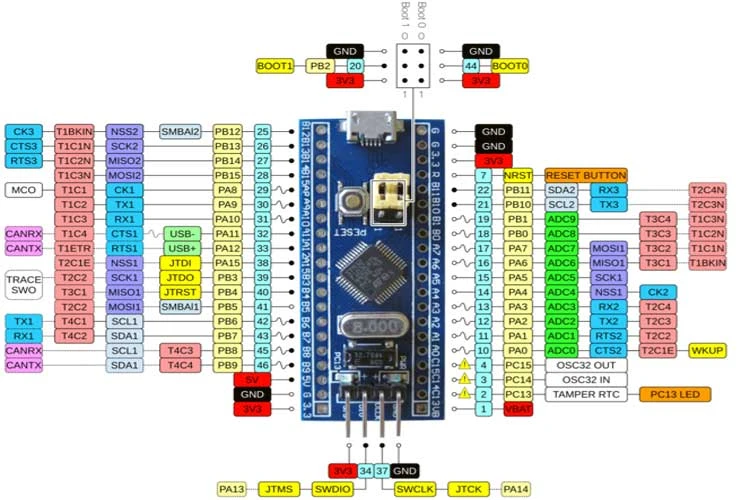

STM32F103C8T6 Pinout
Materials in STM32F103C8T6
The STM32F103C8T6 integrates several essential components, including a CPU core, Flash memory, RAM, and a plethora of peripherals. These materials collectively empower the microcontroller to execute complex tasks with precision.
