| Manufacturer | Texas Instruments |
| Manufacturer Standard Lead Time | 6 Weeks |
| Series | 74LVC |
| Package | Tape & Reel (TR),Cut Tape (CT),Digi-Reel® |
| Description | IC SWITCH SPDT X 1 15OHM SC70-6 |
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 15Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage – Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage – Supply, Dual (V±) | – |
| Switch Time (Ton, Toff) (Max) | 5.7ns, 3.8ns |
| -3db Bandwidth | 340MHz |
| Charge Injection | 7pC |
| Channel Capacitance (CS(off), CD(off)) | 5.2pF |
| Current – Leakage (IS(off)) (Max) | 1µA |
| Crosstalk | -54dB @ 10MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-70-6 |
| Base Product Number | 74LVC1G3157 |
This device is specifically engineered for analog signal switching, ensuring minimal signal distortion and maintaining signal integrity in applications where precise analog signal paths are crucial.
With a single channel, the switch is designed to handle one input signal that can be directed to one of two output paths, or vice versa, facilitating signal selection in various circuit configurations.

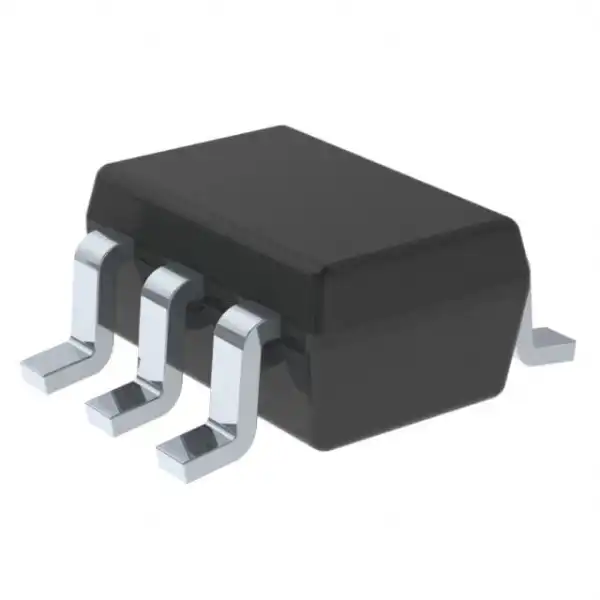

Housed in a compact DCKR package, the SN74LVC1G3157DCKR is suitable for applications with space constraints, allowing for efficient integration into electronic designs with limited board space.
