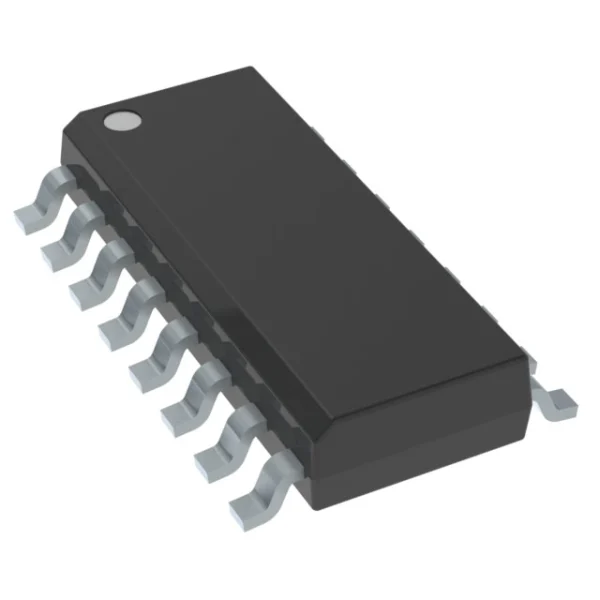

| Manufacturer | Texas Instruments |
| Series | 74LV |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Description | IC REGISTR PAR-LOAD 8BIT 16SO |
| Product Status | Active |
| Manufacturer Standard Lead Time | 6 Weeks |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.209″, 5.30mm Width) |
| Supplier Device Package | 16-SO |
| Base Product Number | 74LV165 |
| Output Type | Complementary |
| Voltage – Supply | 2V ~ 5.5V |
- The functionality of the SN74LV165ANSR is controlled by external clock signals. The Shift Clock (SHCP) input determines the timing of the serial data shifting, while the Parallel Load (PL) input is used to load parallel data into the register simultaneously.
- Multiple SN74LV165ANSR devices can be cascaded, allowing for the expansion of the number of input bits that can be handled. This feature enhances the scalability of the device for applications requiring a larger number of parallel inputs.
- The SN74LV165ANSR finds applications in various digital systems where parallel data needs to be efficiently converted to serial form. Common uses include interfacing with keypads, switches, sensors, or any scenario where parallel data acquisition or transmission is involved.
