| Product Type: | UART Interface IC |
| Type: | UART |
| Manufacturer: | NXP Semiconductors |
| Number of Channels: | 2 Channel |
| Data Rate: | 230.4 kb/s |
| Memory Size: | 8 B |
| Supply Voltage – Max: | 5.5 V |
| Supply Voltage – Min: | 4.5 V |
| Operating Supply Voltage: | 5 V |
| Operating Supply Current: | 10 mA |
| Minimum Operating Temperature: | – 40 C |
| Maximum Operating Temperature: | + 70 C |
| Mounting Style: | SMD/SMT |
| Package / Case: | PLCC-44 |
| Packaging: | Tube |
| Description/Function: | Dual UART |
| Moisture Sensitive: | Yes |

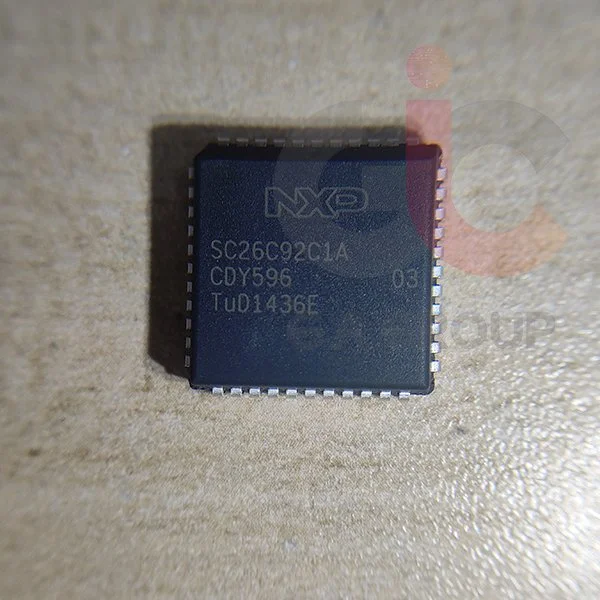

The SC26C92C1A is a dual universal asynchronous receiver/transmitter (DUART) from NXP Semiconductors (formerly Philips). It is commonly used in embedded systems for serial communication purposes. This device integrates two independent UART channels, making it ideal for applications requiring multiple serial ports, such as industrial control systems, networking equipment, and embedded devices.
Applications:
– Embedded Systems: Used in microcontroller-based systems requiring serial communication, such as robotics, instrumentation, and automation.
– Networking Equipment: Employed in routers, switches, and other networking devices that require reliable UART communication for configuration and control.
– Industrial Control Systems: Suitable for industrial automation and control applications where multiple serial ports are needed for interfacing with sensors, actuators, and other peripherals.
– Modem and Telecommunication Devices: Integrates easily with modems and other telecommunication equipment, utilizing its modem control features.
– Computing and Peripheral Devices: Used in computing environments for connecting serial peripherals, including keyboards, mice, and other serial interface devices.
