| Manufacturer | MEAN WELL |
| Series | RS-150 (150W) |
| Package | Box |
| Description | Enclosed AC DC Converters 1 Output 24V 88 ~ 132 VAC, 176 ~ 264 VAC, 248 ~ 373 VDC Input |
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Voltage – Input | 88 ~ 132 VAC, 176 ~ 264 VAC, 248 ~ 373 VDC |
| Size / Dimension | 7.83″ L x 3.86″ W x 1.50″ H (199.0mm x 98.0mm x 38.0mm) |

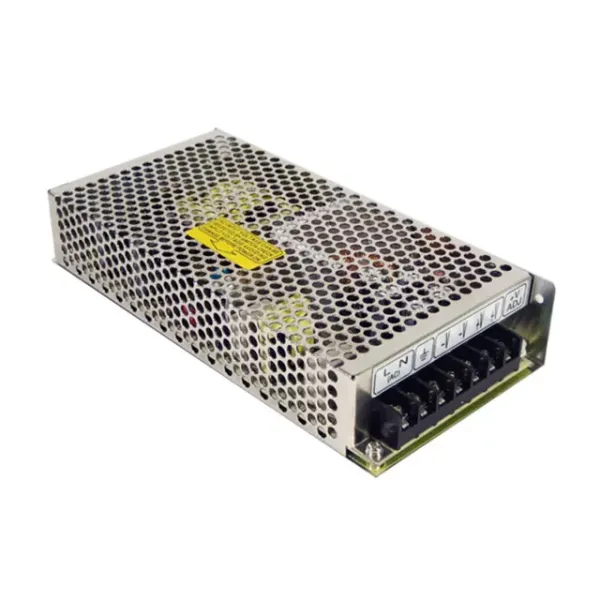

The MEAN WELL RS-150-24 is a 150W power supply unit providing 24V at 6.5A. It operates within an input range of 88-264VAC or 125-373VDC, achieving up to 87.5% efficiency. Measuring 199 x 98 x 38 mm and weighing 0.7 kg, it features protections against short circuit, overload, and overvoltage, with convection cooling. It operates from -25°C to +70°C and meets various international safety and EMC standards, making it suitable for industrial automation, control systems, and household appliances.
