| Manufacturer | ADLINK Technology |
| Series | PCIe-GIE72/74 |
| Dimensions | 167.6 mm x 106.6 mm |

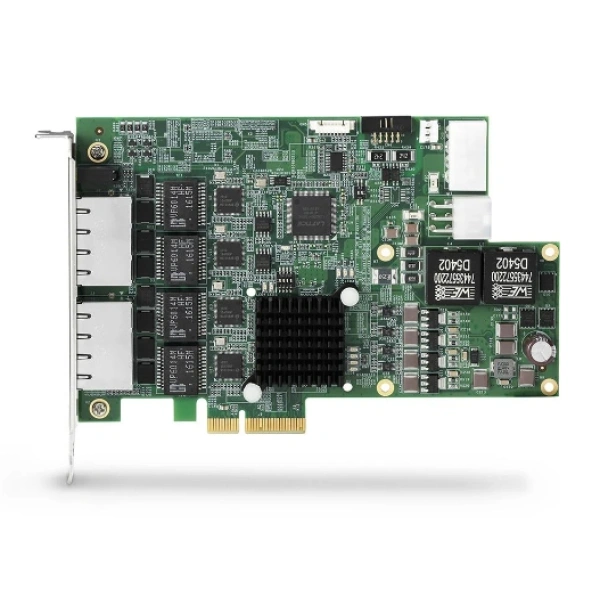

| Description | Video Modules PCIe-GIE74 PRO4-CH PCI Express X 4 Gen2 GigE Grabber with total POE Power up to 120W, POE Protection, POE Power Management, Trigger Over Ethernet and License Management |
| Form Factor | PCIe x4 |
| Interface Type | Ethernet, PCIe |
| Operating Temperature | 0 ℃ ~ 70 ℃ |
| Number of Channels | 4 Channel |
| Operating Supply Current | 3 A |
| Operating Supply Voltage | 3.3 V |
| Subcategory | Embedded Solutions |
| Product Type: | Video Cards |
ADLINK PCIE-GIE74 PRO Features
- PCI Express® x4 compliant
- IEEE 802.3at for PoE+ (Power over Ethernet Plus)
- Multiple cards, multiple cameras, in a single system
- Hardware Trigger over Ethernet with Action Command
- Easy-to-use utility and API provided for PoE power management
- Up to 120W PoE power from PCIe bus/4-pin/6-pin Molex connector
- PoE protection and automated power budget control for enhanced asset protection
- Wide operating temperature range from 0°C to +70°C supporting non-drop frame capture in extreme environments
