| Manufacturer | onsemi / Fairchild |
| Series | NC7WZ04 |
| Package | Reel |

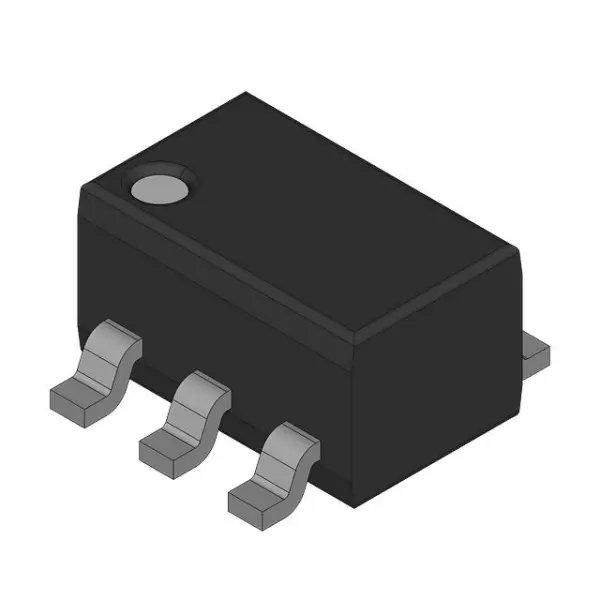

| Description | INVERTER, LVC/LCX/Z SERIES, 2-FU |
| Product Status | Active |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-88 (SC-70-6) |
| Base Product Number | 7WZ04 |
| Logic Type | Inverter |
- The SN74LV1T125DCKR is a stable, low-power single-channel tri-state buffer for signal amplification and driving tasks in low-power electronic devices and logic circuits. It features low power consumption, small package, and wide operating voltage range, making it suitable for a wide range of applications.
- The NC7WZ04P6X is designed to operate over a wide supply voltage range, from 1.65 V to 5.5 V. This flexibility in operating voltage makes it suitable for integration into systems with varying power requirements.
- As an Ultra-High-Speed device, the NC7WZ04P6X is capable of handling fast signal transitions with minimal propagation delay. This feature is crucial in applications where signal integrity and speed are paramount.
- The dual inverter configuration and wide supply voltage range make this IC versatile for various digital logic applications. It can be used in signal processing, digital communication, and other applications where logic level manipulation is necessary.
