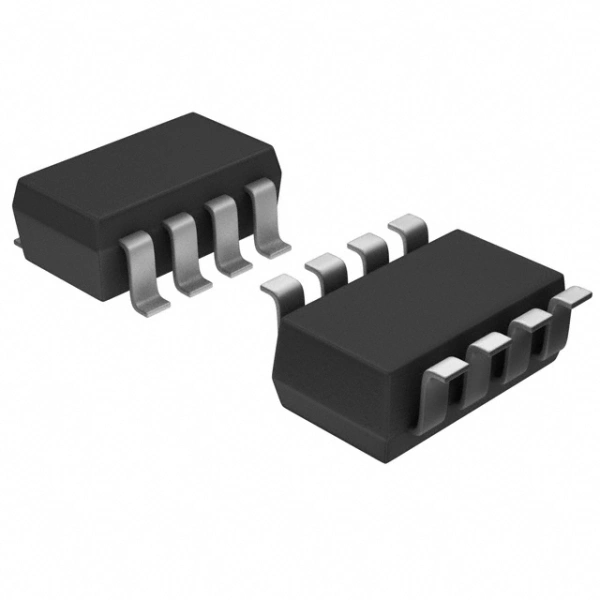

| Manufacturer |
Analog Devices
|
| Series | MAX6735A |
| Package | Strip |
| Description | IC SUPERVISOR MPU W/WD SOT23-8 |
| Product Status | Active |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-8 |
| Supplier Device Package | SOT-23-8 |
| Product Type | Supervisory Circuits |
- The MAX6735AKASHD3+T features an independent watchdog output. A watchdog timer is a critical component in systems where the microprocessor must be reset if it becomes unresponsive or fails to execute a specific task within a predefined time frame. The independent watchdog output enhances system reliability by allowing external circuitry to take appropriate actions based on the watchdog status.
- The IC allows users to set voltage thresholds for monitoring. This feature is crucial for detecting undervoltage and overvoltage conditions, enabling the supervisory circuit to take corrective actions or initiate a system reset when necessary.
- Upon detecting a fault condition, such as an out-of-range voltage or a watchdog timeout, the MAX6735AKASHD3+T generates a reset signal to initiate a controlled and orderly system reset.
- Microprocessor supervisory circuits are widely used in various applications, including embedded systems, automotive electronics, industrial control systems, and any application where the reliable operation of a microprocessor is critical.
