| Manufacturer | Texas Instruments |
| Package | Box |
| Description | Frequency Synthesizer IC 39.3MHz, 15.1GHz 1 48-VFQFN Exposed Pad |
| D/C | Within 2 Years |
| Product Status | Active |
| Type | Frequency Synthesizer |
| Frequency – Max | 39.3MHz, 15.1GHz |
| Divider/Multiplier | Yes/No |
| Voltage – Supply | 3.2V ~ 3.45V |
| Operating Temperature | -55°C ~ 125°C (TC) |
| Package / Case | 48-VFQFN Exposed Pad |

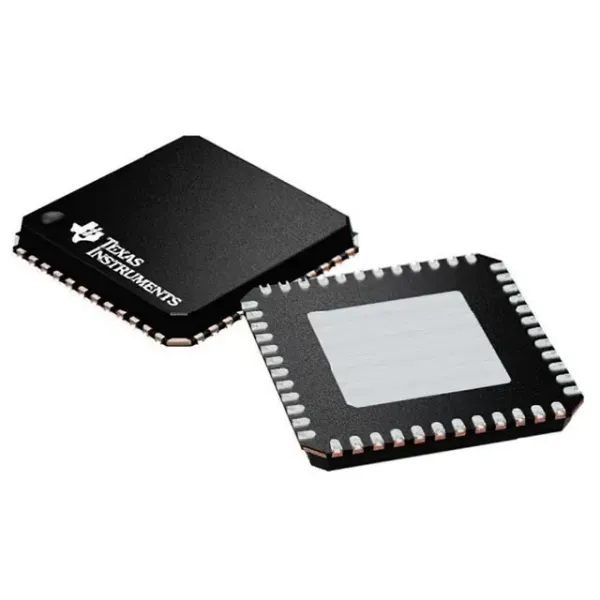

The LMX2694SRTCTSEP is a highly versatile frequency synthesizer and PLL IC from Texas Instruments, capable of generating frequencies spanning from 10 MHz to 15 GHz. It excels in providing stable and low phase noise output, crucial for maintaining signal integrity in RF and microwave applications. Featuring a fractional-N PLL with a high-resolution sigma-delta modulator, it offers precise frequency synthesis and modulation capabilities. The IC supports easy integration with digital systems through interfaces like SPI, making it suitable for use in wireless infrastructure, radar systems, test and measurement equipment, and other high-frequency communication applications that demand reliable and accurate frequency generation.
