| Manufacturer | Texas Instruments |
| Manufacturer Standard Lead Time | 6 Weeks |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Description | IC OPAMP GP 4 CIRCUIT 14SOIC |
| Product Status | Active |
| Number of Circuits | 4 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154″, 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Base Product Number | LM324 |
| Amplifier Type | General Purpose |
| Output Type | – |
| Slew Rate | 0.5V/µs |
| Current – Input Bias | 20 nA |
| Voltage – Input Offset | 3 mV |
| Current – Supply | 1.4mA (x4 Channels) |
| Current – Output / Channel | 30 mA |
| Voltage – Supply Span (Min) | 3 V |
| Voltage – Supply Span (Max) | 30 V |
| Gain Bandwidth Product | 1.2 MHz |

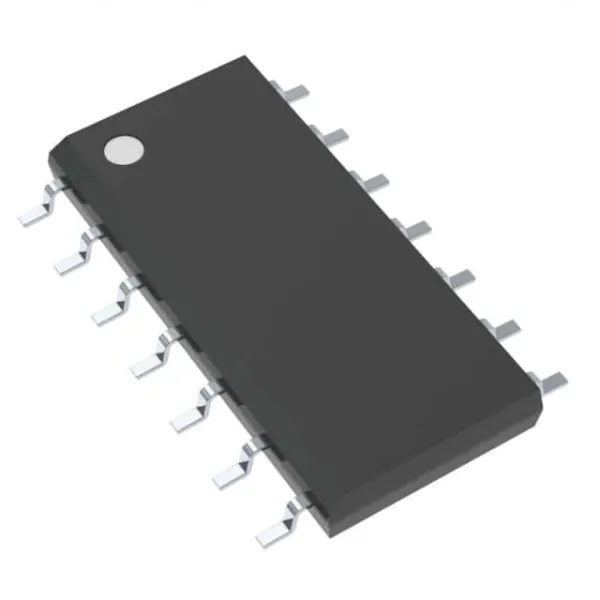

Texas Instruments LM324DR is a general-purpose operational amplifier integrated circuit. It consists of four amplifier circuits and is available in a 14-SOIC (Small Outline Integrated Circuit) package for surface mount applications.
