| Manufacturer | Texas Instruments |
| Manufacturer Standard Lead Time | 6 Weeks |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Description | IC OPAMP GP 2 CIRCUIT 8SOIC |
| Product Status | Active |
| Number of Circuits | 2 |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154″, 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | LM258 |
| Amplifier Type | General Purpose |
| Slew Rate | 0.3V/µs |
| Current – Input Bias | 20 nA |
| Voltage – Input Offset | 3 mV |
| Current – Supply | 500µA (x2 Channels) |
| Current – Output / Channel | 40 mA |
| Voltage – Supply Span (Min) | 3 V |
| Voltage – Supply Span (Max) | 32 V |
| Gain Bandwidth Product | 700 kHz |

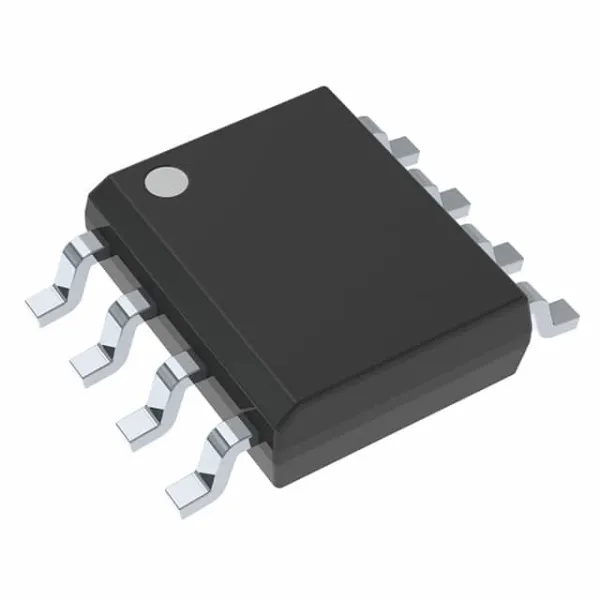

Texas Instruments LM324DR is a general-purpose operational amplifier integrated circuit. It consists of two amplifier circuits and is available in an 8-SOIC (Small Outline Integrated Circuit) package. The gain bandwidth product of this IC is 700 kHz.
