| Manufacturer | Infineon |
| Technology | Si |
| Mounting Style | SMD/SMT |
| Package / Case | SOT-23-3 |
| Transistor Polarity | P-Channel |
| Number of Channels | 1 Channel |
| Vds – Drain-Source Breakdown Voltage | 20 V |
| Id – Continuous Drain Current | 2.6 A |
| Rds On – Drain-Source Resistance | 157 mOhms |
| Vgs – Gate-Source Voltage | – 12 V, + 12 V |
| Vgs th – Gate-Source Threshold Voltage | 1.1 V |
| Qg – Gate Charge | 2.9 nC |
| Minimum Operating Temperature | – 55 C |
| Maximum Operating Temperature | + 150 C |
| Pd – Power Dissipation | 1.3 W |
| Channel Mode | Enhancement |
| Tradename | HEXFET |
| Series | P-Channel Power Mosfet |
| Packaging | MouseReel |
| Brand | Infineon Technologies |
| Configuration | Single |
| Fall Time | 16 ns |
| Forward Transconductance – Min | 3.4 S |
| Height | 1.1 mm |
| Length | 2.9 mm |
| Product Type | MOSFET |
| Rise Time | 7.7 ns |
| Factory Pack Quantity | 3000 |
| Subcategory | MOSFETs |
| Transistor Type | 1 P-Channel |
| Typical Turn-Off Delay Time | 26 ns |
| Typical Turn-On Delay Time | 5.3 ns |
| Width | 1.3 mm |
| Unit Weight | 0.000282 oz |

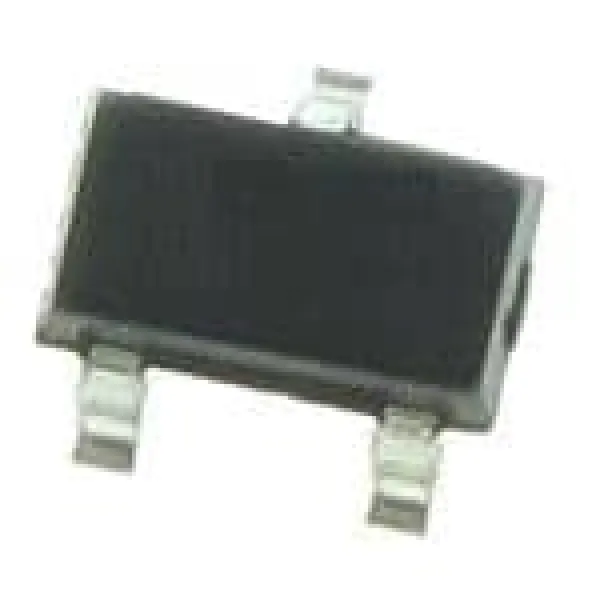

IRLML2246TRPBF is a product code for a specific electronic component. It is a Power MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) made by Infineon Technologies. This MOSFET is used for switching applications in various electronic circuits, such as power supplies, motor control, and LED driver circuits. The “TRPBF” at the end of the product code stands for the surface mount package type used for this component.
