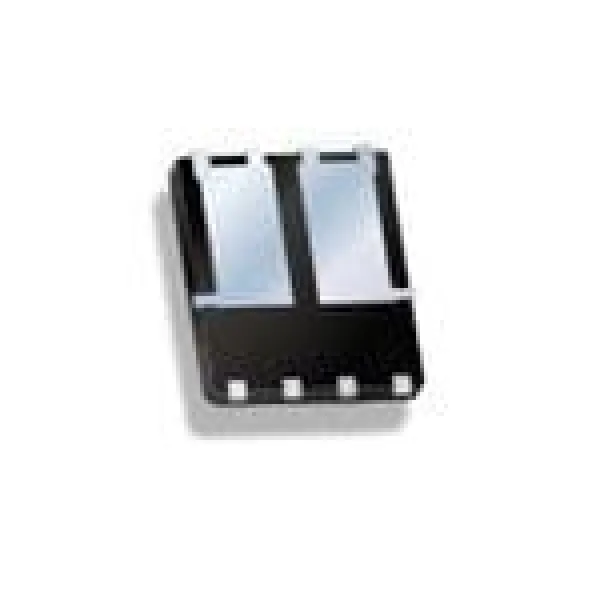

IPG20N06S4L-14

MOSFET N-Ch 60V 20A TDSON-8 OptiMOS-T2

sku:IPG20N06S4L-14

Manufacture:Infineon Technologies

Manufacturer	Infineon
Series	OptiMOS-T2
Product Type	MOSFET
Factory Pack Quantity	5000
Tradename	OptiMOS
Technology	Si
Mounting Style	SMD/SMT
Package / Case	TDSON-8
Transistor Polarity	N-Channel
Number of Channels	2 Channel
Vds – Drain-Source Breakdown Voltage	60 V
Id – Continuous Drain Current	20 A
Rds On – Drain-Source Resistance	13.7 mOhms
Vgs – Gate-Source Voltage	– 16 V, + 16 V
Maximum Operating Temperature	+ 175 C
Pd – Power Dissipation	50 W
Configuration	Dual
Height	1.27 mm
Length	5.9 mm
Transistor Type	2 N-Channel
Width	5.15 mm
