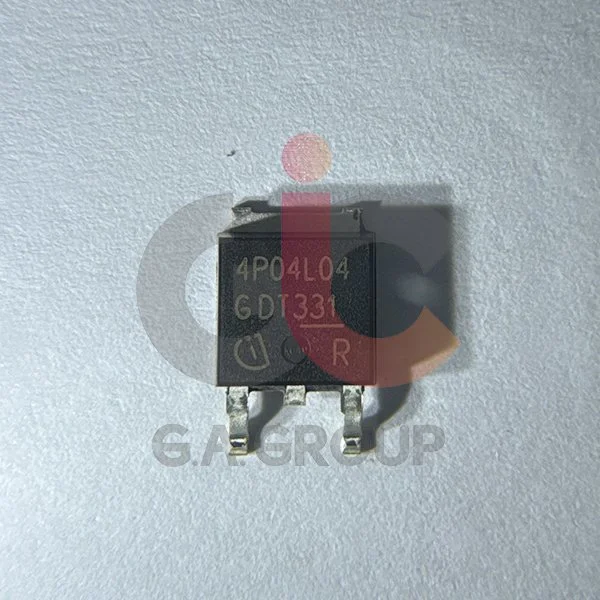

IPD90P04P4L-04 Infineon Technologies Power-Transistor

Manufacturer	Infineon
Technology	Si
Mounting Style	SMD/SMT
Package / Case	TO-252-3
Transistor Polarity	P-Channel
Number of Channels	1 Channel
Vds – Drain-Source Breakdown Voltage	40 V
Id – Continuous Drain Current	90 A
Rds On – Drain-Source Resistance	6.6 mOhms
Vgs – Gate-Source Voltage	– 16 V, + 5 V
Vgs th – Gate-Source Threshold Voltage	1.2 V
Qg – Gate Charge	135 nC
Minimum Operating Temperature	– 55 C
Maximum Operating Temperature	+ 175 C
Pd – Power Dissipation	125 W
Channel Mode	Enhancement
Tradename	OptiMOS
Series	OptiMOS-P2
Packaging	MouseReel
Brand	Infineon Technologies
Configuration	Single
Fall Time	60 ns
Height	2.3 mm
Length	6.5 mm
Product Type	MOSFET
Rise Time	20 ns
Factory Pack Quantity	2500
Subcategory	MOSFETs
Transistor Type	1 P-Channel
Typical Turn-Off Delay Time	140 ns
Typical Turn-On Delay Time	20 ns
Width	6.22 mm
Unit Weight	0.011640 oz
