| Manufacturer: | Microchip |
| Processor Series: | dsPIC30F |
| Product Type: | DSP – Digital Signal Processors & Controllers |
| Program Memory Type: | Flash |
| Core: | dsPIC30F |
| Number of Cores: | 1 Core |
| Maximum Clock Frequency: | 40 MHz |
| Minimum Operating Temperature: | – 40 ℃ |
| Maximum Operating Temperature: | + 85 ℃ |
| Package / Case: | DIP-28 |
| Program Memory Size: | 12 kB |
| Data RAM Size: | 512 B |
| Operating Supply Voltage: | 2.5 V to 5.5 V |
| Mounting Style: | Through Hole |
| Data Bus Width: | 16 bit |
| Data ROM Size: | 1024 B |
| Instruction Type: | Fixed/Floating Point |
| Interface Type: | I2C, SPI, UART |
| Moisture Sensitive: | Yes |
| Number of I/Os: | 20 I/O |
| Number of Timers/Counters: | 3 Timer |
| Supply Voltage – Min: | 2.5 V |
| Packaging: | Tube |

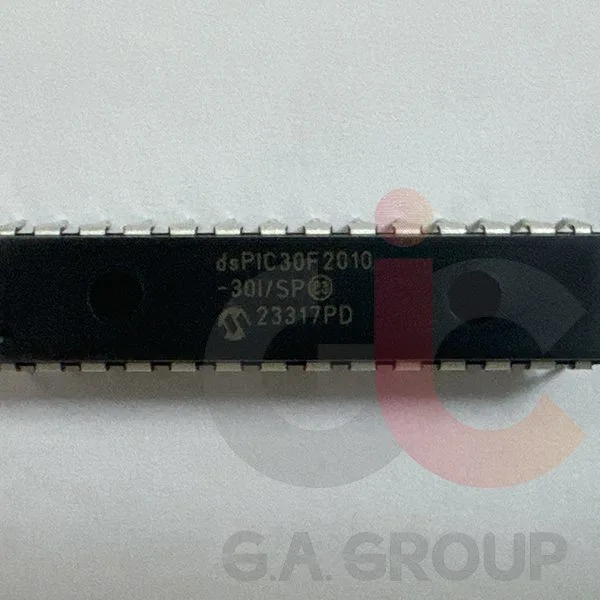

The DSPIC30F2010-30I/SP is a 16-bit digital signal controller (DSC) from Microchip Technology, combining the features of a microcontroller (MCU) with the capabilities of a digital signal processor (DSP). This device is part of the dsPIC30F series, which is widely used in motor control, power conversion, and other applications requiring efficient and precise control with digital signal processing capabilities.
