| Manufacturer | NXP USA Inc. |
| Series | 56F8xx |
| Package | Tray |
| Description | 56800 56F8xx Microcontroller IC 16-Bit 80MHz 64KB (32K x 16) FLASH 100-LQFP (14×14) |
| Manufacturer Standard Lead Time | 26 Weeks |
| Product Status | Active |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-LQFP |
| Supplier Device Package | 100-LQFP (14×14) |
| Base Product Number | DSP56F803 |
| Product Type: | DSP – Digital Signal Processors & Controllers |

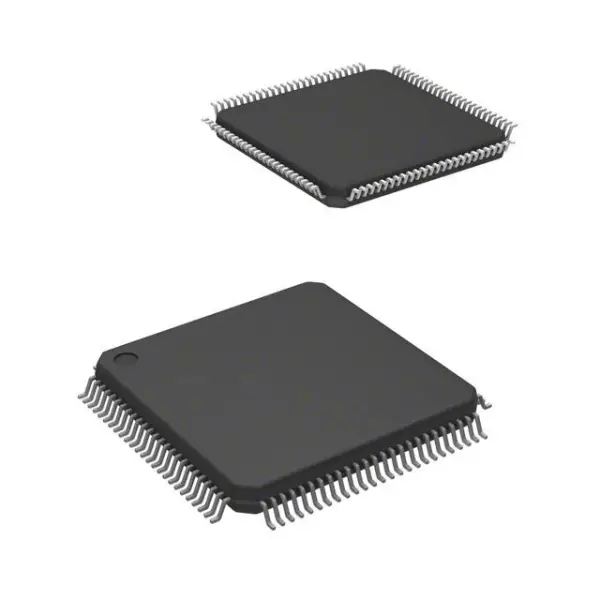

The DSP56F803BU80E, part of NXP’s DSP56300 core family, is a digital signal controller tailored for real-time control and digital signal processing applications. Equipped with a 16-bit CPU core featuring DSP extensions, it offers robust processing capabilities. This controller integrates various peripherals such as timers, communication ports, ADCs, and PWM outputs, making it suitable for a diverse array of applications, including industrial automation, automotive systems, and consumer electronics. Its powerful processing capabilities and integrated peripherals make it a versatile choice for tasks requiring efficient digital signal processing and control functionalities.
