PackageTape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
| Manufacturer | Texas Instruments |
| Series | – |
| D/C | Within 2 Years |
| Description | Bipolar, Unipolar Motor Driver NMOS PWM 16-HTSSOP |
| Manufacturer Standard Lead Time | 12 Weeks |
| Product Status | Active |
| Motor Type – Stepper | Bipolar, Unipolar |
| Motor Type – AC, DC | Brushed DC |
| Function | Driver – Fully Integrated, Control and Power Stage |
| Voltage – Supply (Vcc/Vdd) | 4.5V ~ 37V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Package / Case | 16-PowerTSSOP (0.173″, 4.40mm Width) |

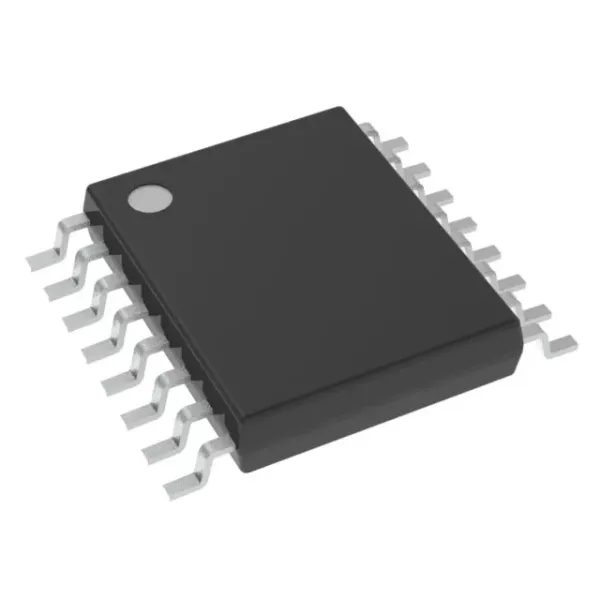

The DRV8874QPWPRQ1 from Texas Instruments is an automotive-qualified motor driver IC that operates from 4.5V to 37V, supporting peak currents up to 6A. It features an H-bridge for bidirectional motor control, PWM input for precise speed regulation, and analog control for current limiting. Integrated protection mechanisms include overcurrent protection, overtemperature protection, and undervoltage lockout, with fault conditions reported via the nFAULT pin. The low Rds(on) MOSFETs and PowerPAD™ package enhance efficiency and thermal management.
