| Manufacturer | onsemi |
| Package | Tape & Reel (TR),Cut Tape (CT) |

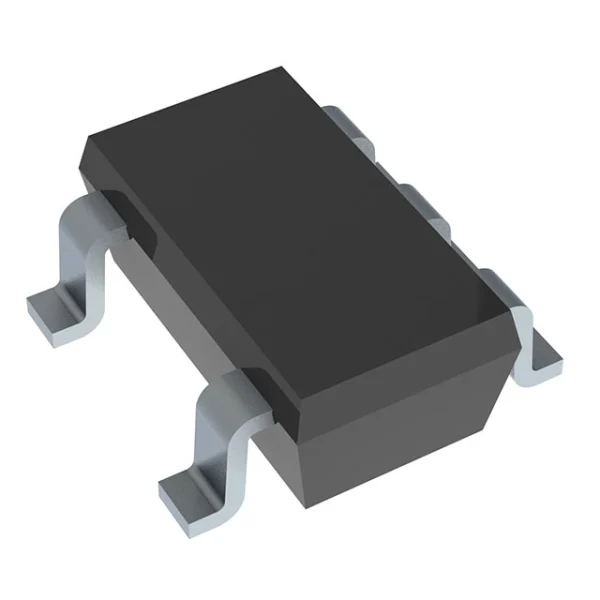

| Description | IC SUPERVISOR 1 CHANNEL TSOT23-5 |
| Product Status | Active |
| Manufacturer Standard Lead Time | 28 Weeks |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Type | Simple Reset/Power-On Reset |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| Base Product Number | CAT823 |
| Output | Push-Pull, Totem Pole |
- Supervisory circuits like the CAT823STDI-GT3 are commonly used in microcontroller-based systems, ensuring that the microcontroller operates reliably and resets in case of faults or glitches.
- The CAT823STDI-GT3 supports both active-low (MR) and active-high (WD) configurations. This flexibility allows designers to adapt the circuit to the requirements of the overall system architecture.
- CAT823STDI-GT3 is a supervisory circuit with master reset and watchdog timer functions. Its active-low MR and active-high WD features, along with a 200 ms reset delay time, make it a reliable component for ensuring the stability and proper operation of microcontroller-based systems. The push-pull output configuration adds versatility to its application in various electronic designs.
