| Number of pins | 7 |
| Package Style | SFM |
| ICC [max] (mA) | 345 |
| Security Status | COMPANY PUBLIC |
| Frequency (Min-Max) (MHz) | 40,550 |
| fi(RF) [min] (MHz) | 40 |
| Frequency (Max) (MHz) | 550 |
| Frequency (Min) (MHz) | 40 |
| Frequency (Min-Max) (GHz) | 0.040000003 to 0.55 |
| Part Life Cycle Code | Transferred |
| Number of Functions | 1 |
| Operating Temperature-Min | -20 °C |
| Package Equivalence Code | SOT-115J |
| Supply Current-Max | 345 mA |
| Operating Temperature-Max | 100 °C |
| Power Supplies ! | 24 V |
| Technology | HYBRID |

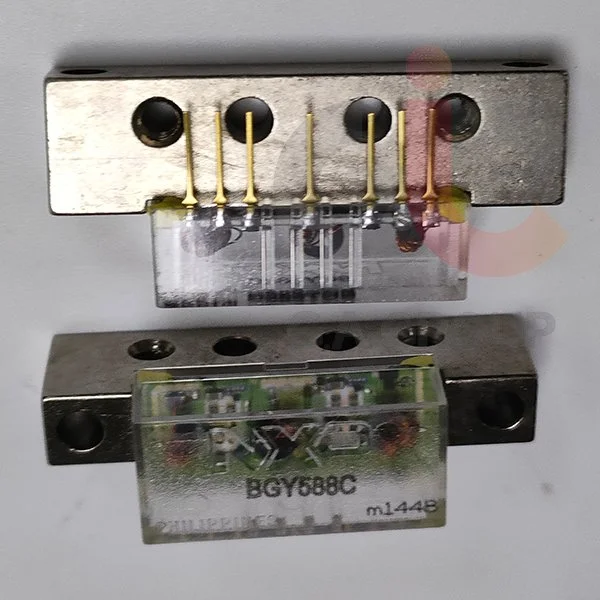

The BGY588C is a hybrid power amplifier module designed by NXP Semiconductors, specifically for use in CATV (Cable Television) systems. It is utilized in line amplifier and distribution amplifier applications within cable networks to provide high-gain and linear amplification across a wide frequency range, ensuring that signals remain strong and clear throughout the network.
Applications:
1. CATV Line Amplifiers:
– Used in line amplifiers to boost the signal strength along the cable network, ensuring that signals remain strong and clear over long distances.
2. Distribution Amplifiers:
– Applied in distribution amplifiers within cable headends and distribution hubs to evenly distribute amplified signals to multiple branches of the network.
3. Trunk Amplifiers:
– Utilized in trunk amplifiers to amplify signals in the main cable trunk lines before they are distributed to smaller branches.
4. Cable Modem Systems:
– Supports upstream and downstream signal amplification in cable modem systems, improving overall network performance and user experience.
