| Manufacturer: | Rectron |
| Mounting Style: | SMD/SMT |
| Gain Bandwidth Product fT: | 100 MHz |
| Package / Case: | SOT-23-3 |
| Transistor Polarity: | NPN |
| Configuration: | Single |
| DC Collector/Base Gain hfe Min: | 450 |
| Collector- Emitter Voltage VCEO Max: | 45 V |
| Collector- Base Voltage VCBO: | 50 V |
| Emitter- Base Voltage VEBO: | 6 V |
| Collector-Emitter Saturation Voltage: | 600 mV |
| Maximum DC Collector Current: | 100 mA |
| Pd – Power Dissipation: | 250 mW |
| Minimum Operating Temperature: | – 55 C |
| Maximum Operating Temperature: | + 150 C |
| Packaging: | Reel |

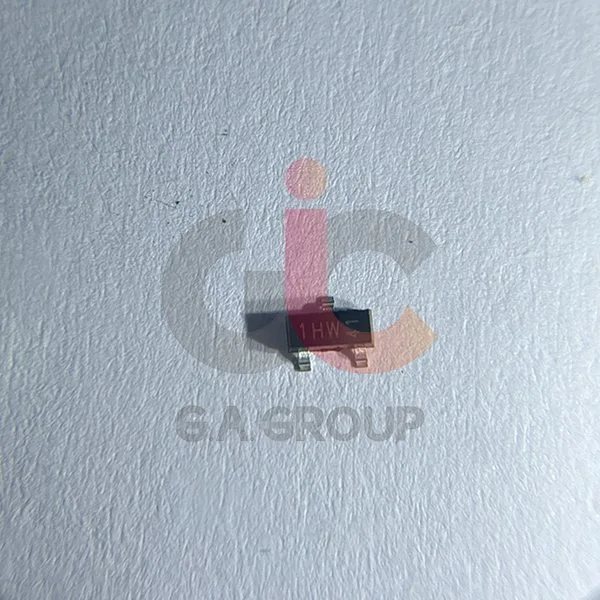

The BC847 is a general-purpose NPN bipolar junction transistor (BJT), and Rectron is one of the manufacturers of this component. The BC847 is similar to the BC547 but is commonly available in a surface-mount package (SOT-23), making it suitable for compact, high-density PCB designs.
Common Applications:
– Switching: Used for switching applications in digital circuits, such as controlling small loads like LEDs and relays.
– Amplification: Suitable for signal amplification in audio, RF, and other analog circuits.
– Signal Processing: Employed in various signal processing applications, including waveform generation and conditioning.
– General-Purpose Use: Commonly used in low-current, low-power applications such as sensors, small signal amplifiers, and other general-purpose circuits.
