| Manufacturer | Analog Devices Inc. |
| Manufacturer Standard Lead Time | 13 Weeks |
| Series | iCoupler® |
| Package | Tape & Reel (TR),Cut Tape (CT) |
| Description | DGTL ISO 5KV RS422/RS485 16SOIC |
| Product Status | Active |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |

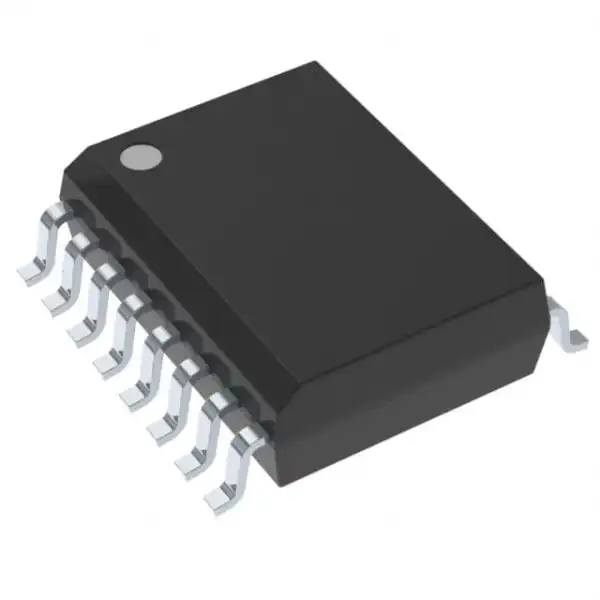

| Package / Case | 16-SOIC (0.295″, 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | ADM2490 |
| Type | RS422, RS485 |
| Number of Channels | 2 |
| Technology | Magnetic Coupling |
| Isolated Power | No |
| Inputs – Side 1/Side 2 | 1/1 |
| Channel Type | Unidirectional |
Built with enhanced Electrostatic Discharge (ESD) protection, the ADM2490EBRWZ-REEL7 safeguards the RS-485 communication interface from electrical disturbances. This feature enhances the robustness of the IC, making it resilient in environments where ESD events are a concern.
With an extended operating temperature range, this IC is designed to perform reliably in challenging environmental conditions. From harsh industrial settings to outdoor installations, the ADM2490EBRWZ-REEL7 ensures consistent performance across a broad temperature spectrum.
The IC’s compact form factor contributes to space efficiency, allowing engineers to integrate it into systems with limited space constraints. Its small footprint makes it an ideal choice for applications where size is a critical consideration.
The ADM2490EBRWZ-REEL7 finds application in a diverse range of scenarios, including industrial automation, building automation, and networked systems. Its high-speed, full-duplex capabilities make it suitable for use in environments where reliable and efficient data communication is paramount.
