| Manufacturer | Analog Devices Inc. |
| Manufacturer Standard Lead Time | 13 Weeks |
| Package | Tape & Reel (TR), Cut Tape (CT) |
| Description | IC MUX 8:1 4.5OHM 16TSSOP |
| Product Status | Active |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 4.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 120mOhm |
| Voltage – Supply, Single (V+) | 3.3V ~ 16V |
| Voltage – Supply, Dual (V±) | ±3.3V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 94ns, 93ns |
| -3db Bandwidth | 40MHz |
| Charge Injection | 29pC |
| Channel Capacitance (CS(off), CD(off)) | 19pF, 117pF |
| Current – Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -64dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173″, 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |

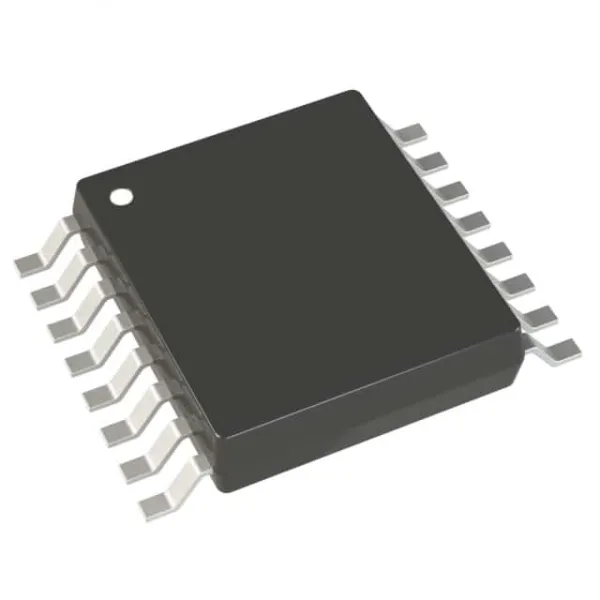

The ADG1608BRUZ-REEL7 facilitates the selection and routing of signals from eight different sources, offering flexibility in managing multiple input channels.
With an impressively low on-resistance of 4.5 ohms, this multiplexer ensures minimal signal distortion during the switching process.
The IC is designed to maintain signal integrity with minimal distortion or crosstalk. Its precise signal path ensures that the selected signals retain their accuracy.
