| Manufacturer | Analog Devices Inc. |
| Manufacturer Standard Lead Time | 26 Weeks |
| Package | Tape & Reel (TR), Cut Tape (CT), Digi-Reel® |
| Description | IC SWITCH SP4TX2 4.7OHM 16TSSOP |
| Product Status | Active |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 4.7Ohm |
| Channel-to-Channel Matching (ΔRon) | 200mOhm |
| Voltage – Supply, Single (V+) | 5V ~ 16.5V |
| Voltage – Supply, Dual (V±) | ±4.5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 120ns, 120ns |
| -3db Bandwidth | 115MHz |
| Charge Injection | -50pC |
| Channel Capacitance (CS(off), CD(off)) | 14pF, 40pF |
| Current – Leakage (IS(off)) (Max) | 200pA |
| Crosstalk | -70dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |

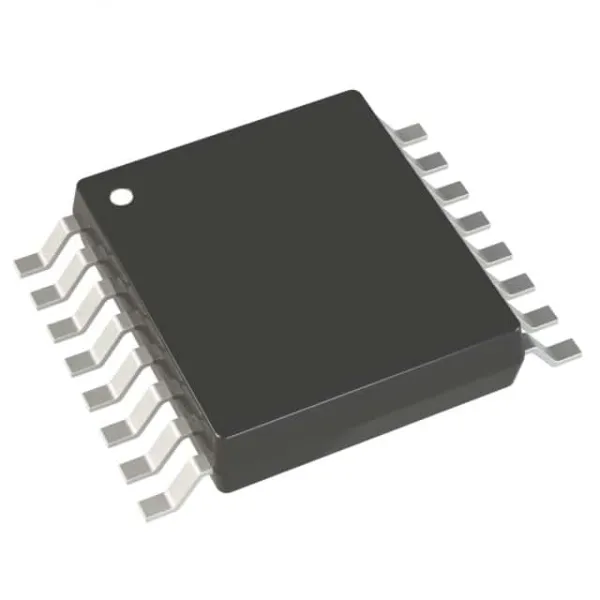

| Package / Case | 16-TSSOP (0.173″, 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | ADG1409 |
The ADG1409YRUZ-REEL7 finds applications in diverse industries, including telecommunications, audio processing, medical equipment, and test and measurement instruments. Its versatile performance and differential signal handling capabilities make it a versatile component in various electronic systems.
Experience the benefits of precise and low-distortion signal routing with the ADG1409YRUZ-REEL7. Whether you’re designing audio interfaces, measurement instruments, or communication systems, this multiplexer is engineered to meet the stringent demands of high-performance applications.
