| Manufacturer | Analog Devices Inc. |
| Manufacturer Standard Lead Time | 13 Weeks |
| Package | Tape & Reel (TR),Cut Tape (CT) |

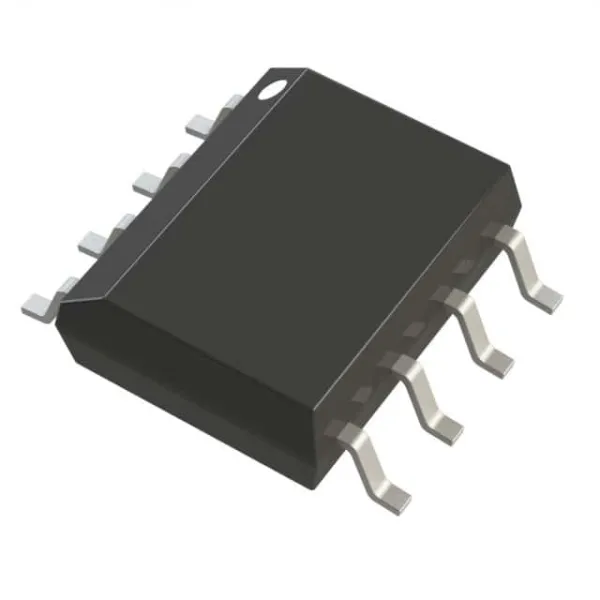

| Description | IC INST AMP 1 CIRCUIT 8SOIC |
| Product Status | Active |
| Number of Circuits | 1 |
| -3db Bandwidth | 825 kHz |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154″, 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | AD8221 |
| Amplifier Type | Instrumentation |
| Slew Rate | 2V/µs |
| Current – Input Bias | 500 pA |
| Voltage – Input Offset | 60 µV |
| Current – Supply | 900µA |
| Current – Output / Channel | 18 mA |
| Voltage – Supply Span (Min) | 4.6 V |
| Voltage – Supply Span (Max) | 36 V |
- Leveraging the instrumentation amplifier architecture, this IC excels in applications where precise differential signal amplification is required. It provides high common-mode rejection, reducing the impact of common-mode noise on the amplified signal.
- With a gain of 130 dB, this instrumentation amplifier delivers high amplification for even the smallest input signals. Additionally, its low noise characteristics contribute to the overall signal fidelity, ensuring that the amplified output remains free from unwanted interference.
- The IC boasts a wide dynamic range, allowing it to handle signals with a broad range of amplitudes. This feature enhances its versatility, making it suitable for applications with varying signal strengths.
- The precision and performance of the AD8221ARZ-R7 make it a valuable component in applications such as medical instrumentation, industrial automation, sensor signal conditioning, and data acquisition systems. Its ability to provide accurate and reliable amplification contributes to the success of projects in multiple industries.
