| Manufacturer | Analog Devices Inc. |
| Manufacturer Standard Lead Time | 13 Weeks |
| Package | Tube |
| Description | IC R/D CONV 10/12/14/16B 44PLCC |
| Product Status | Active |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 44-LCC (J-Lead) |
| Supplier Device Package | 44-PLCC (16.59×16.59) |
| Base Product Number | AD2S82 |
| Type | R/D Converter |
| Number of Channels | 2 |
| Resolution (Bits) | 10, 12, 14, 16 b |
| Data Interface | Parallel |
| Voltage Supply Source | Dual ± |
Precision Resolver-to-Digital Conversion: The AD2S82ALPZ is specifically engineered to convert resolver signals into digital data with high precision. This is essential for applications where accurate angular position sensing is critical.

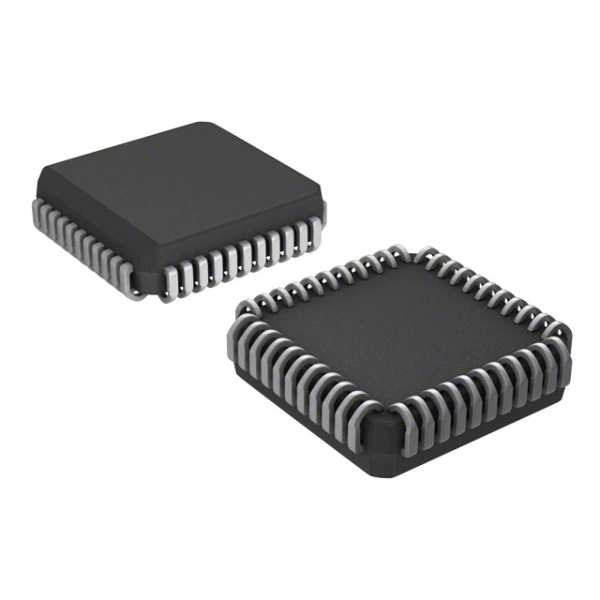

PLCC Package: The device is packaged in a PLCC (Plastic Leaded Chip Carrier) package, providing a secure and compact form factor suitable for integration into electronic systems.
2 ARC MIN Resolution: The converter offers a remarkable resolution of 2 arc minutes, ensuring fine granularity in angular position measurements. This high resolution is beneficial in applications demanding precise control and feedback.
Wide Range of Applications: Resolver-to-digital converters are widely used in applications such as robotics, aerospace systems, and industrial automation where accurate angular position feedback is crucial for proper system operation.
